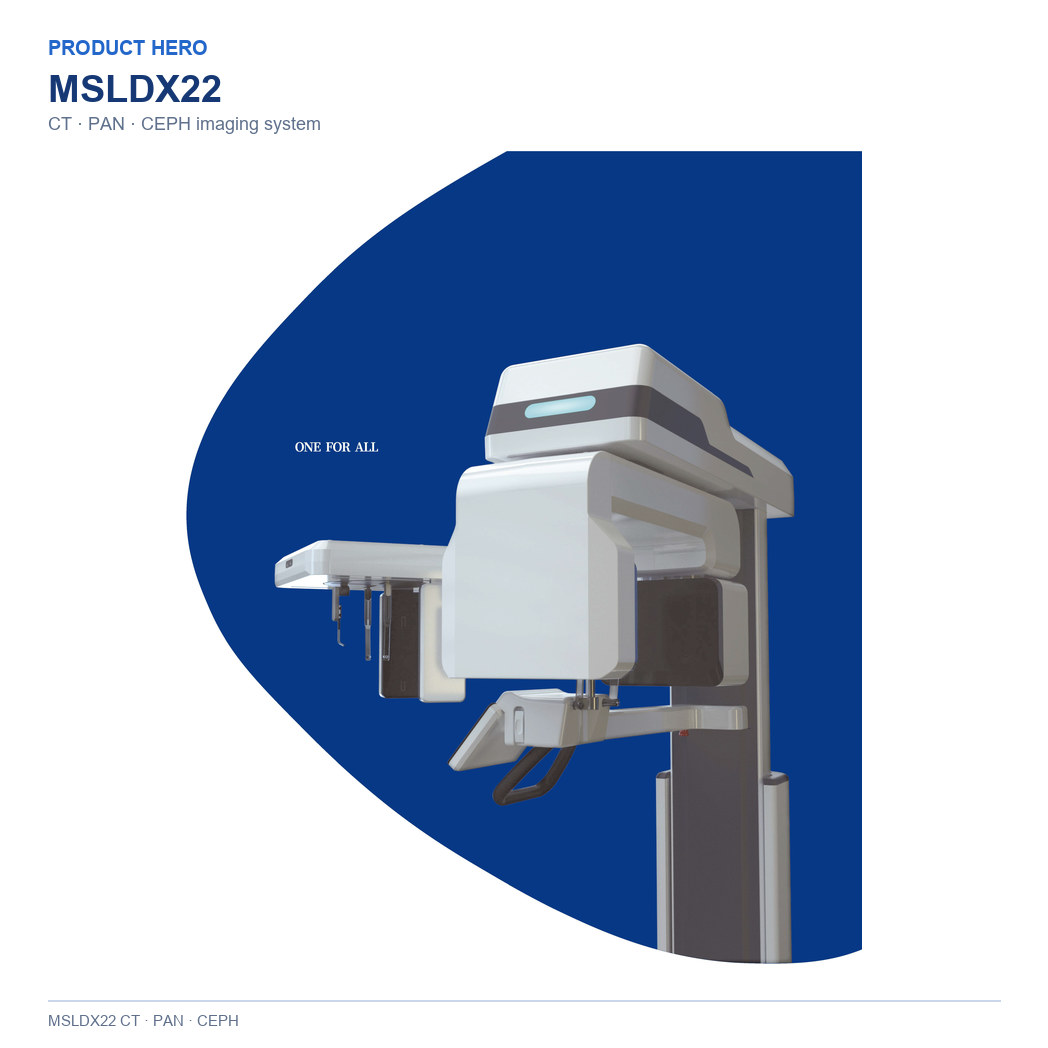

MSLDX22 CT·PAN·CEPH
Product Overview
The MSLDX22 CT·PAN·CEPH is a dental imaging system that supports CT, panoramic and cephalometric imaging in one unit. According to the MSLDX22 brochure, the system provides multiple FOV (field of view) options, including 12×10, 15×10 and 16×10 cm combinations, with 8×8 cm and 5×8 cm options. It is equipped with a CsI+ (CMOS/TFT) detector, a tube voltage of 60–100 kV, a tube current of 2–10 mA, a focal spot of 0.5 (IEC 60336), a spatial resolution of 2.2 lp/mm, a reconstruction time of less than 60 seconds, a voxel size of 0.05–0.25 mm and a unit weight of 220 kg.
Please confirm the final configuration and technical documents before ordering.

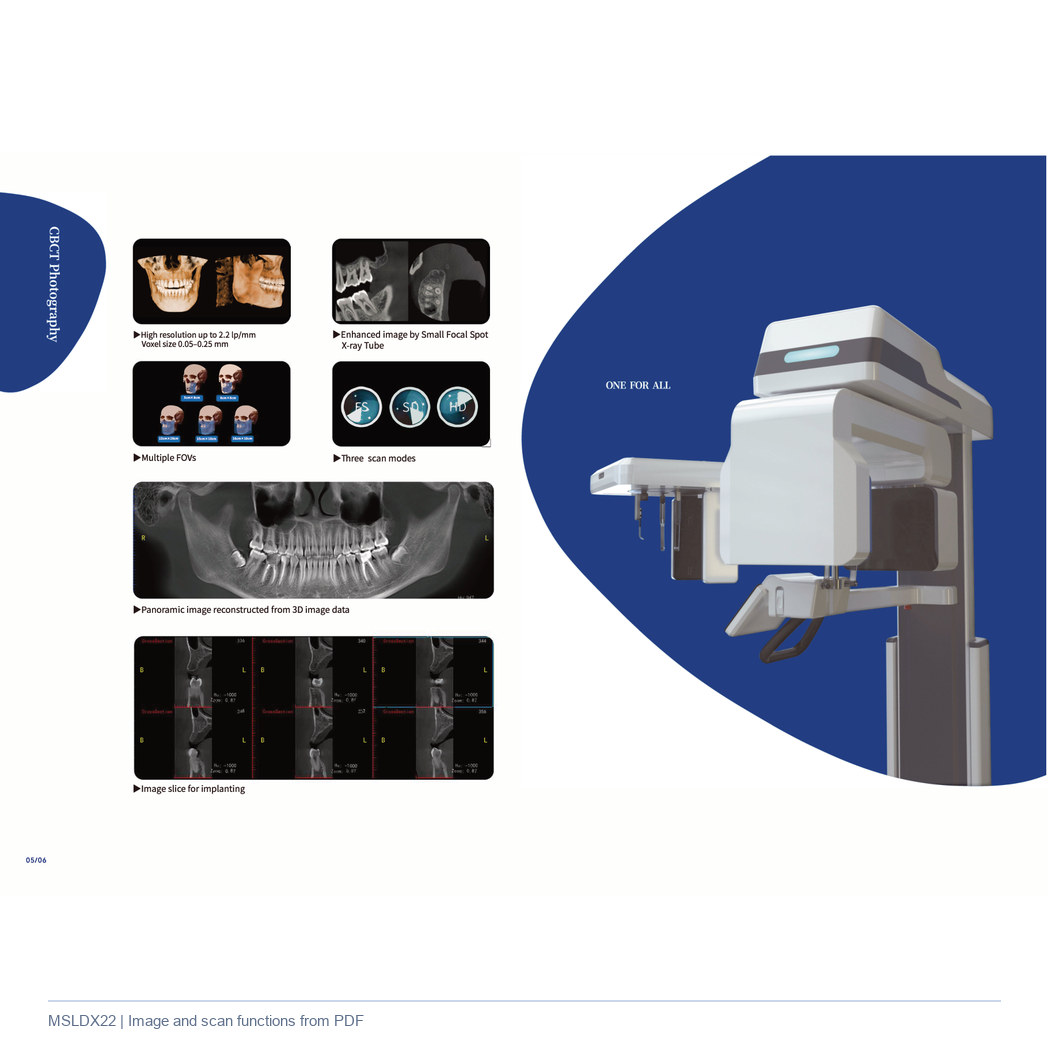

Imaging Functions

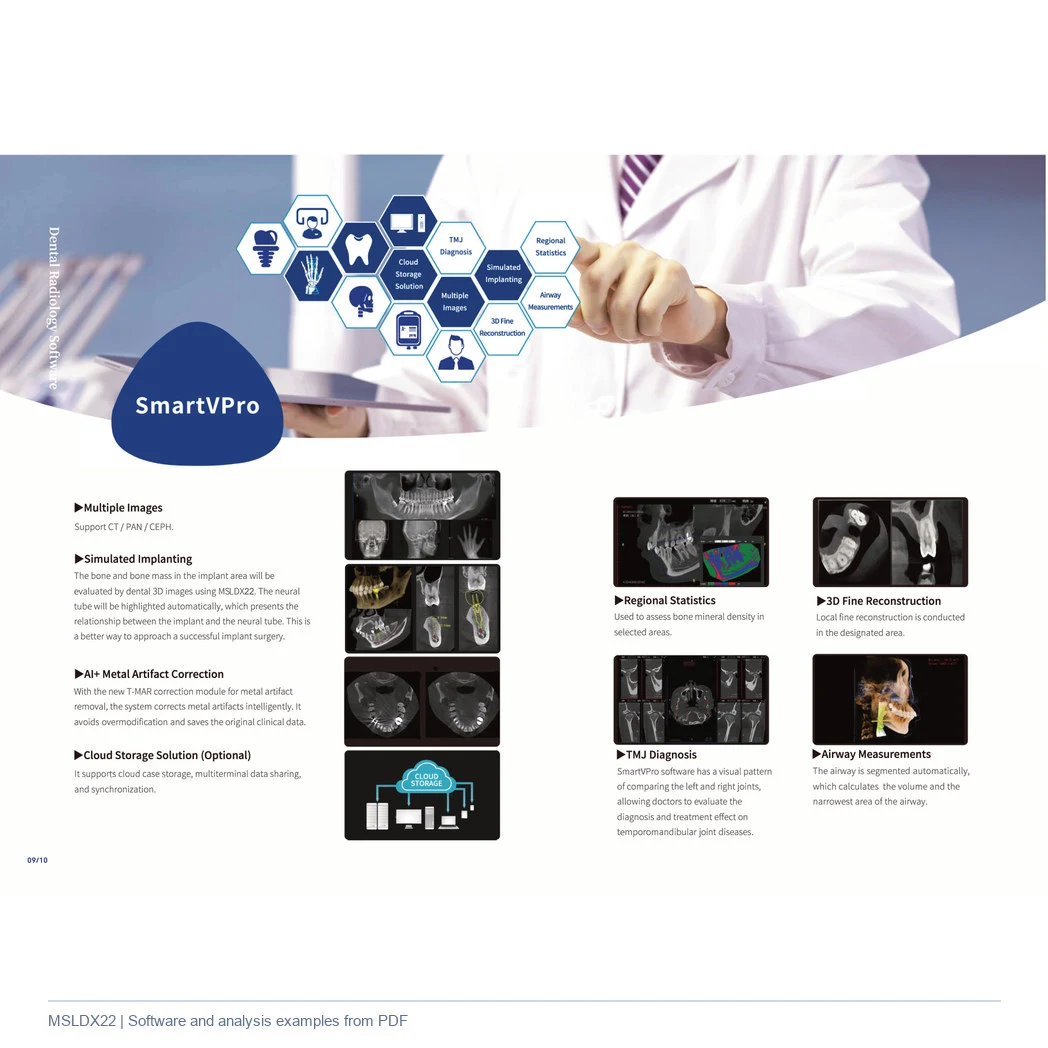

Based on the MSLDX22 brochure, the system lists the following imaging and analysis functions:
- Multi-modality imaging: CT, panoramic and cephalometric (PAN/CEPH) examinations in one system.
- Multiple FOV selections for flexible diagnostic coverage.
- Panoramic and TMJ (temporomandibular joint) imaging.
- Cephalometric imaging, including PA/LAT and carpus views.
- 3D fine reconstruction for detailed volumetric evaluation.
- AI+ metal artifact correction to support clearer image reading.
- Optional cloud storage for image management.
- Regional statistics for quantitative assessment.
- Airway measurement functions.
- Orthodontic case-report functions.
- Additional AI functions as listed in the MSLDX22 brochure.
These functions are based on the content listed in the MSLDX22 brochure and are not medical-effect guarantees. Please confirm the included modules with the final configuration.
Sale Service
The MSLDX22 brochure does not specify detailed installation, warranty, return, payment or logistics policies. Please confirm final service terms before ordering.
Quick Details
| Product Type | Dental imaging system (CT · PAN · CEPH) |
|---|---|
| Model | MSLDX22 |
| Imaging Modes | CT, panoramic and cephalometric imaging |
| FOV Options | 12×10, 15×10 and 16×10 cm combinations; 8×8 cm and 5×8 cm options |

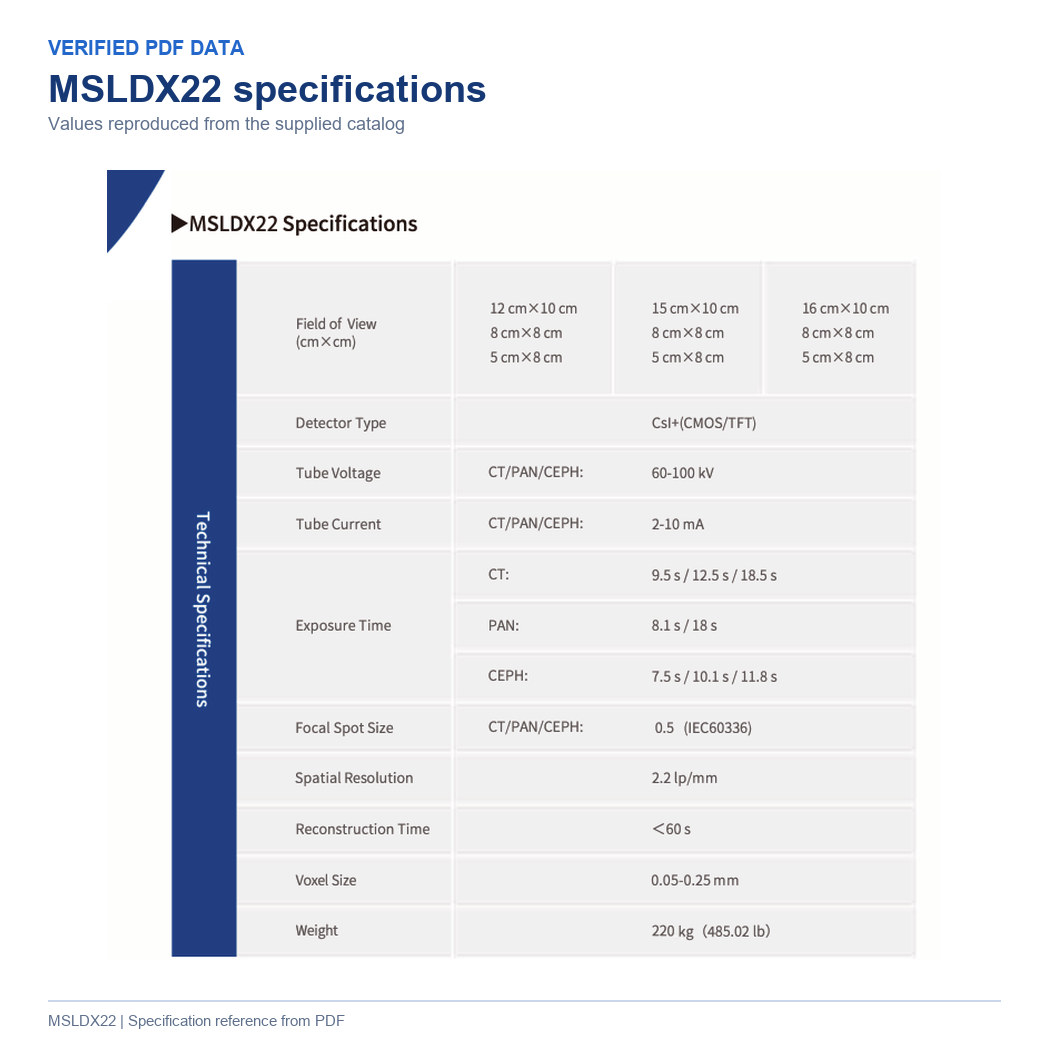

Specification
| Detector | CsI+ (CMOS/TFT) |
|---|---|
| Tube Voltage | 60–100 kV |
| Tube Current | 2–10 mA |
| Focal Spot | 0.5 (IEC 60336) |
| Spatial Resolution | 2.2 lp/mm |
| Reconstruction Time | < 60 s |
| Voxel Size | 0.05–0.25 mm |
| Unit Weight | 220 kg |

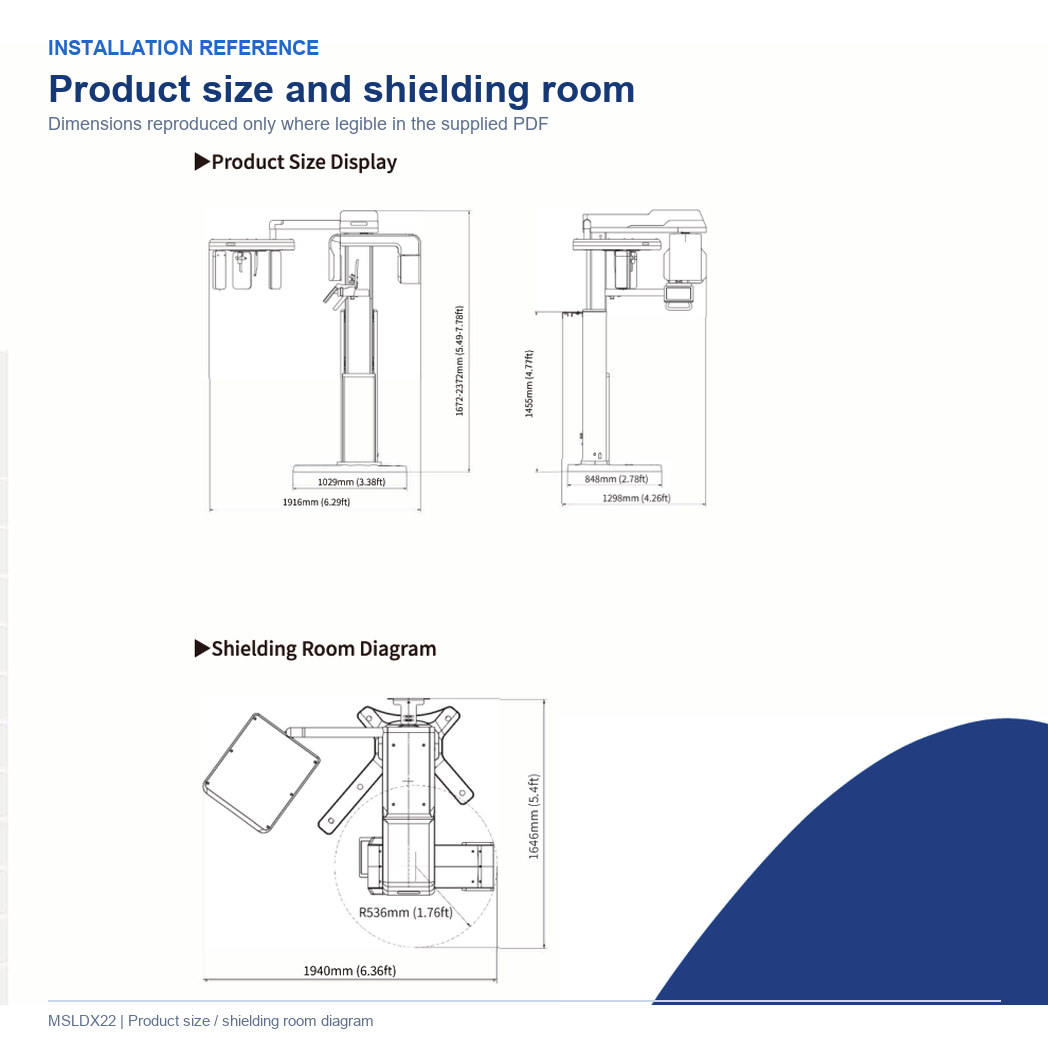

| Shielding Room Diagram | Layout shown in the brochure diagram (Image 07). Refer to it as a shielding room diagram only; it is not to be used as installation dimensions. |
Final configuration and technical documents should be confirmed before ordering.
FAQ
Q1. What imaging modes does MSLDX22 support?
A1. MSLDX22 supports CT, panoramic and cephalometric imaging, subject to the final configuration.
Q2. What FOV options are listed?
A2. The brochure lists 12×10, 15×10 and 16×10 cm combinations with 8×8 cm and 5×8 cm options; please confirm the final configuration.
Q3. What are the core technical specifications?
A3. 60–100 kV tube voltage, 2–10 mA tube current, 0.5 focal spot (IEC 60336), 2.2 lp/mm spatial resolution, <60 s reconstruction time and 0.05–0.25 mm voxel size.
Q4. Does the system include software and analysis functions?
A4. The brochure lists imaging and analysis functions including TMJ, airway measurements, regional statistics, 3D fine reconstruction and orthodontic case-report functions; please confirm the included modules.
Q5. Who can provide product details?
A5. Bei Jing Shuyuan Runjing Medical Technology (SYRJ) can provide product details and quotation, subject to final configuration confirmation.
